NAAKUU NKBY1-D 1P 50 amp Type 3 SPD Surge Protector For PC/TV

group name: Surge Protective Device

Min Order: 100 piece

brand name: NAAKUU Electrical Equipment Manufacturer

model: NKBY1-D 1P

Nearest port for product export: Ningbo Port, Shanghai Port, Guangzhou Port, Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 19:58:46 GMT

contact supplier

Paramtents

Un (V):230/400 In (kA):5/10
Imax (kA):10/20 Uc (8/20μs)(V):275/320/385/420/440
Up (8/20μs)(kV):1.2/1.5/1.8 Installation:35mm DIN Rail

Packging & Delivery

10cm x7cm x6cm
Min Order100 piece

Briefing

The NKBY1-D 1P is spd surge protector for pc/tv with type 3 protection 50amp.

Detailed

Product Introduction

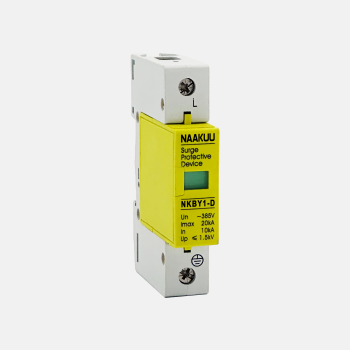

NKBY1-D 1P

The NKBY1-D is Type 3 SPD.This NKBY1 Series Surge Protection Device 30kA AC SPD Arrester is suitable for power supply systems such as TT, IT, TN-S, TN-C, TN-C-S, etc., with a rated operating voltage of 400V or below and compatible with both 50Hz and 60Hz frequency, this product can be used as an equipotential connection during lightning strikes. The shell is designed to be installed on a 35mm standard electrical guide rail. The product is equipped with a failure detachment device, which can automatically disconnect the surge protector from the power grid when it fails due to overheating, breakdown, etc. The remote monitoring function is achieved through the alarm switch contact device, and the module can be replaced with working.

Product Detailed Parameters

Model	NKBY1-B	NKBY1-C	NKBY1-D
Pole	1P/2P（1P+N)/3P/4P(3P+N)
Un (V)	230/400
In (kA)	30/40/50/60/80	20	5/10
Imax (kA)	60/80/100/120/150	40	10/20
Uc (8/20μs)(V)	320/385/420/400	275/320/385/420/400	275/320/385/420/440
Up (8/20μs)(kV)	2.0/2.5/3.0/4.0	1.5/1.6/1.8/2.0/2.0	1.2/1.5/1.8
Response Time	<25ns
Protection Level	IP20
Temperature	-40℃~70℃
Shell Material	PBT/PA66
Fire-retardant Rating	V0
Installation	35mm DIN Rail
Color	Red	White	Yellow

New upgradation：

1.Plug and play , with a chip utilizing a plug-and-play approach for easy replacement.

2.Flame-retardant casing, secure insulation.

3.Visual window, green screen indicates normal operation, red indicates a malfunction and requires replacement.

What can we do for you?

High quality service

1.Twenty years of experience in foreign trade,we have sufficient talent and resources in foreign trade exports , and have successively exported to overseas countries.
2.OEM/ODM:Strong R&D and design team to meet different customization needs..
3.After sale services: 2yrs warranty, product global liability insurance.

If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.: contact us
