NAAKUU NKG1-125H 1P 20amp 60amp 100amp Disconnecting Switch For Low Voltage
- group name
- Isolating Switch
- Min Order
- 1 piece
- brand name
- NAAKUU Electrical Equipment Manufacturer
- model
- NKG1-125H 1P
- Nearest port for product export
- Ningbo Port, Shanghai Port, Guangzhou Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 19:38:23 GMT
Paramtents
Type:Isolator Switch Rated Frequency (Hz):50/60Hz
Rated voltage:230V,400V AC Rated current:32~125A
Rated Current Capacity:20ln/1s Mechanical Life:3000Times
Packging & Delivery
-
Min Order1 piece
Briefing
The NKG1-125H 1P is disconnect switch with 20/60/100amp rated current.
Detailed
Product Introduction

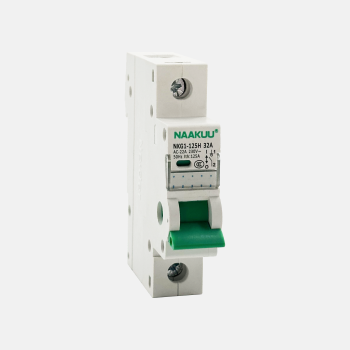

NKG1-125H 1P
NKG1-125H is an disconnecting switch （isolating switch）available in 1P, 2P, 3P, and 4P models, with rated currents of 32, 63, 80, 100, and 125A. It is typically used to disconnect the power source within an electrical circuit to ensure safe operation, maintenance, or repairs. Its primary function is to completely isolate the circuit from the power source rather than merely interrupting the current.The NPG1-125H disconnecting switch has high dynamic thermal stability and is mainly used as the main switch in terminal combination electrical appliances. It is suitable for distribution and control circuits with AC 50Hz or 60Hz, rated voltage 400V and below. It can also be used to control motors, low-power electrical appliances, and lighting, and is widely used in industrial and mining enterprises, high-rise buildings, commercial and household places.
Product Detailed Parameters
Model | NKG1-125H |
Type | Disconnect Switch |
Pole | 1P/2P/3P/4P |
Rated voltage | 230V,400V AC |
Rated current | 32~125A |
Rated Current Capacity | 20ln/1s |
Protection Function | Isolation |
Pruduction standards | IEC 60947-3,GB14048.3 |
Mechanical Life | 3000Times |
Installation | 35mm DIN Rail |
Ambient Temperature | -5℃~+60℃ |
Relative Humidity | ≤95% |
Color | White |
Our Feature
1.Snap setting.
2.flame retardant shell.
3. strong heat dissipation.
