NAAKUU NKG1-125H 3 pole Electric Disconnector Isolator Switch For 1 Phase Electric

group name: Isolating Switch

Min Order: 1 piece

brand name: NAAKUU Electrical Equipment Manufacturer

model: NKG1-125H 3P

Nearest port for product export: Ningbo Port, Shanghai Port, Guangzhou Port, Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 18:23:42 GMT

contact supplier

Paramtents

Type:Isolator Switch Rated Frequency (Hz):50/60Hz
Rated voltage:230V,400V AC Rated current:32~125A
Rated Current Capacity:20ln/1s Mechanical Life:3000Times

Packging & Delivery

Min Order1 piece

Briefing

The NKG-125H 3 pole is electric disconnector for 1 phase electric.

Detailed

Product Introduction

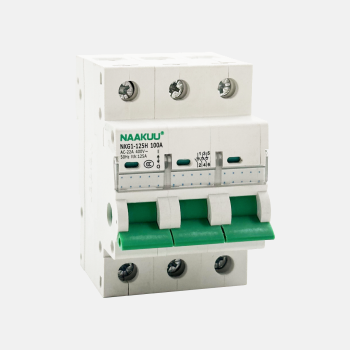

NKG1-125H 3P

NKG1-125H is a disconnector available in 1P, 2P, 3P, and 4P models, with rated currents of 32, 63, 80, 100, and 125A. It is typically used to disconnect the power source within an electrical circuit to ensure safe operation, maintenance, or repairs. Its primary function is to completely isolate the circuit from the power source rather than merely interrupting the current.The NPG1-125H disconnecting switch has high dynamic thermal stability and is mainly used as the main switch in terminal combination electrical appliances. It is suitable for distribution and control circuits with AC 50Hz or 60Hz, rated voltage 400V and below. It can also be used to control motors, low-power electrical appliances, and lighting, and is widely used in industrial and mining enterprises, high-rise buildings, commercial and household places.

Product Detailed Parameters

Model	NKG1-125H
Type	Disconnect Switch
Pole	1P/2P/3P/4P
Rated voltage	230V,400V AC
Rated current	32~125A
Rated Current Capacity	20ln/1s
Protection Function	Isolation
Pruduction standards	IEC 60947-3,GB14048.3
Mechanical Life	3000Times
Installation	35mm DIN Rail
Ambient Temperature	-5℃~+60℃
Relative Humidity	≤95%
Color	White

Our Feature

1.Snap setting.

2.flame retardant shell.

3. strong heat dissipation.
