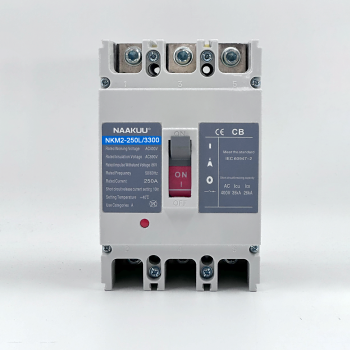

Best Supply NKM2-250 3P 250A 200A Breaker MCCB Circuit Breaker

group name: Molded Case Circuit Breaker

Min Order: 1 piece

brand name: NAAKUU Electrical Equipment Manufacturer

model: NKM2-250 3P

Nearest port for product export: Ningbo Port, Shanghai Port, Guangzhou Port, Qingdao Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 16:56:06 GMT

contact supplier

Paramtents

Rated Current：100,125,140,160,180,200,250 Rated Operational Voltage：AC400V,AC690V
Rated Insulation Voltage:AC800V Icu Level:L,M,H
Inm:250A Pole:3,4

Packging & Delivery

Min Order1 piece

Briefing

NKM2-250 3P 250A MCCB - Your ODM Partner in Electrical Safety Solutions.

Detailed

Product Introduction

NKM2-250 3P

NKM2 series mccb circuit breaker , whose rated insulation voltage is 800V, is suitable for AC 50 Hz/ 60Hz, rated working voltage AC380V / 400V / 415V, AC660V / 690V, and rated operating current up to 1250A circuit. The MCCB has overload, short circuit and undervoltage protection functions, which can improve the reliability and continuity of power supply and protect power equipment from damage. According to the rated limit short-circuit breaking capacity, MCCB are divided into L type (standard type) , M type (higher breaking type) and H type (high breaking type).

Product Detailed Parameters

Model		NKM2-63			NKM2-100				NKM2-250				NKM2-400				NKM2-630				NKM2-800			NKM2-1250
Inm(A)		63			100				225（250）				400				630				800			1250
Rated Current(A)		6,10,16,20,25,32,40,50,63			10,16,20,25,32,40,50,63,80,100				100,125,140,160,180,200,225(250)				225,250,315,350,400				400,500,630				630,700,800			630,700,800,1000,1250
Rated Operational Voltage (V)		AC400			AC400	AC690 AC400	AC400	AC400	AC400	AC690 AC400	AC400	AC400	AC400	AC690 AC400	AC400	AC400	AC400	AC690 AC400	AC400	AC400	AC690 AC400	AC400		AC400,AC690
Rated Insulation Voltage(V)		AC500			AC800
Pole		3	3	4	3	3	4	3	3	3	4	3	3	3	4	3	3	3	4	3	3	4	3	3
Icu Level		L	M		L	M		H	L	M		H	L	M		H	L	M		H	M		H	M	H
Icu （kA）	AC690V					10				10				15				15			20			20	20
	AC400V	25	50		35	50	50	85	35	50	50	85	50	65	65	100	50	65	65	100	75		100	75	100
Ics（kA）	AC690V					8				10				11							15			18	20
	AC400V	19	38		22	38	38	85	26	38	38	65	38	49	49	75	38	49	49	75	56		75	60	75
Operational Performance	Electrify	800			8000				8000				8000				8000				8000			8000
	Without Electric	2000			20000				20000				15000				15000				15000			15000
Size	L	135			150				165				257				270				280			330
	W	78		103	92		122	92	107		142	107	150		198	150	182		240	182	210	280	210	210
	H	73.5	81.5		68	86			86	103			106.5				110				115.5			137
Arcing Overdistance		0、≤50			0、≤50				≤50				≤50				≤100				≤100			≤120

New upgradation：

1.The use of flame-resistant material for the outer shell provides excellent impact resistance, heat resistance, resistance to low temperatures, and good insulation performance.

2.Disconnector operating handle, with a linkage structure design, reliably achieves the connection and disconnection operations of the product.

3.Terminal connectors, silver alloy contacts, possess excellent conductivity.

What can we do for you?

High quality service

1.Twenty years of experience in foreign trade,we have sufficient talent and resources in foreign trade exports , and have successively exported to overseas countries.
2.OEM/ODM:Strong R&D and design team to meet different customization needs..
3.After sale services: 2yrs warranty, product global liability insurance.

If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.: contact us
