The ABS material possesses characteristics such as impact resistance, heat resistance, low-temperature resistance, excellent
chemical resistance, superior electrical properties, and a good surface gloss.

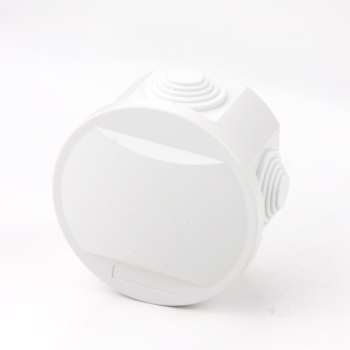

NK-RA 80*50 White ABS PVC Small IP55 Waterproof Electrical Junction Box
- group name
- Junction Box
- Min Order
- 1 piece
- brand name
- NAAKUU Electrical Equipment Manufacturer
- model
- NK-RA 80*50
- Nearest port for product export
- Ningbo Port, Shanghai Port, Guangzhou Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 20:18:57 GMT
Paramtents
Body Material：ABS Stopper Material：PVC
IP:55 Installation：Inside，Outside
Hole Qty：4 Certificates：CE,ROHS
Packging & Delivery
-
Min Order1 piece
Briefing
NK-RA Small Waterproof Junction Box | OEM/ODM & Wholesale - Durable IP55 ABS PVC, Ideal for Safe Electrical Connections.
Detailed
Product Introduction
NK-RA 80×50
Waterproof Junction Box
Body material: ABS
Stopper material: PVC
Material characteristics: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
Certificates: CE, ROHS
Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on.
Installation: 1 Inside: There are the installation holes in the base for circuit board
or din rail.
2,Outside: The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base.
Outlet hole: Cutting a hole in the PVC stopper as related cable size or installing cable gland to get better waterproof performance.
Product Parameter
Model Code | Outside Dimenstion | Hole Qty | Hole Size | G.Weight | N.Weight | Qty/Carton | Carton Dimenstion | IP | ||
L | W | H | ||||||||
NK-RA 50*50 | 50 | 50 | 4 | 25 | 14 | 12.9 | 300 | 45.5*38*51 | 55 | |
NK-RA 80*50 | 80 | 50 | 4 | 25 | 14.7 | 13.4 | 240 | 53*35*65 | 55 | |
NK-RA 85*85*50 | 85 | 85 | 50 | 7 | 25 | 18 |
16.6
|
200
|
52*41*52.5
|
55
|
NK-RA 100*100*70 | 100 | 100 | 70 | 7 | 25 | 16.3 | 14.7 | 100 | 61*49*34.5 | 65 |
NK-RA 150*110*70 | 150 | 110 | 70 | 10 | 25 | 15.7 | 14.2 | 60 | 66.5*34.5*46 | 65 |
NK-RA 150*150*70 | 150 | 150 | 70 | 8 | 25 | 16.1 | 14.3 | 60 | 84.5*35*45 | 65 |
NK-RA 200*100*70 | 200 | 100 | 70 | 8 | 25 | 16.6 | 15.3 | 60 | 61*46*42 | 65 |
NK-RA 200*155*80 | 200 | 155 | 80 | 10 | 36 | 15.5 | 13.9 | 40 | 69.5*43.5*41 | 65 |
NK-RA200*200*80 | 200 | 200 | 80 | 12 | 36 | 19.9 | 17.9 | 40 | 45.5*45.5*79 | 65 |
NK-RA 255*200*80 | 255 | 200 | 80 | 12 | 36 | 22.8 | 21 | 40 | 55*44*79.2 | 65 |
NK-RA 255*200*120 | 255 | 200 | 120 | 12 | 36 | 21.9 | 20.1 | 30 | 64*55*62 | 65 |
NK-RA 300*250*120 | 300 | 250 | 120 | 12 | 36 | 22.4 |
19.9
|
20
|
64*55*61.5
|
65
|
NK-RA 400*350*120 | 400 | 350 | 120 | 16 | 36 | 14.8 |
13.3
|
10
|
74.5*42.5*61.5
|
65
|
1.ABS Material
—
—
2.Reserved Openings Are Provided
—
—
Allowing users to select and utilize existing plugs based on the wire size, or to use matching waterproof clamping connectors for optimal waterproofing effects.
3.Internal Installation
—
Inside the box, there is a raised platform for the installation of circuit boards or DIN rail components.
What can we do for you?
High quality service
1.Twenty years of experience in foreign trade,we have sufficient talent and resources in foreign trade exports , and have successively exported to overseas countries.
2.OEM/ODM:Strong R&D and design team to meet different customization needs..
3.After sale services: 2yrs warranty, product global liability insurance.
- If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
