The ABS material possesses characteristics such as impact resistance, heat resistance, low-temperature resistance, excellent
chemical resistance, superior electrical properties, and a good surface gloss.

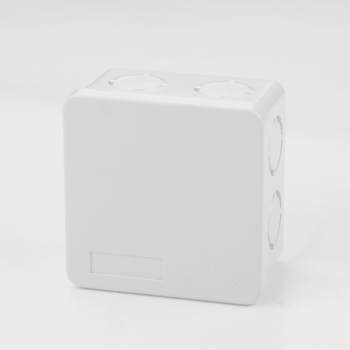

China Manufacturer NK-RT 85*85*50 Square ABS Material Waterproof IP65 Junction Box For Outdoor
- group name
- Junction Box
- Min Order
- 1 piece
- brand name
- NAAKUU Electrical Equipment Manufacturer
- model
- NK-RT 85*85*50
- Nearest port for product export
- Ningbo Port, Shanghai Port, Guangzhou Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Fri, 22 Nov 2024 04:28:34 GMT
Paramtents
Body Material：ABS N.Weight：14.4KG
IP:65 Installation：Inside，Outside
Hole Qty：7 Certificates：CE,ROHS
Packging & Delivery
-
Min Order1 piece
Briefing
Secure Your Connections with NK-RT IP65 Junction Box, Ideal for Outdoor - Wholesale/OEM/ODM.
Detailed
Product Introduction
NK-RT 85×85×50
Waterproof Junction Box
Body material: ABS
Material characteristics: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
Certificates: CE, ROHS
Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on.
Installation: 1, Inside: There are the installation holes in the base for circuit board
or din rail.
2,Outside: The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base.
Outlet hole: The plastic plate in the hole can be knocked off and installing cable gland to get better waterproof performance.
Product Parameter
Model Code | Outside Dimenstion | Hole Qty | Hole Size | G.Weight | N.Weight | Qty/Carton | Carton Dimenstion | IP | ||
L | W | H | ||||||||
NK-RT 50*50 | 50 | 50 | 4 | 25 | 12.9 | 11.7 | 300 | 45.5*37.5*51 | 55 | |
NK-RT 80*50 | 80 | 50 | 4 | 25 | 13.1 | 11.8 | 240 | 53*35*62 | 55 | |
NK-RT 85*85*50 | 85 | 85 | 50 | 7 | 25 | 15.6 |
14.4
|
200
|
45*37*53
|
55
|
NK-RT 100*100*70 | 100 | 100 | 70 | 7 | 25 | 14 | 12.5 | 100 | 57*46*35 | 65 |
NK-RT 150*110*70 | 150 | 110 | 70 | 10 | 25 | 13.6 | 12.3 | 60 | 62*31.5*46.5 | 65 |
NK-RT 150*150*70 | 150 | 150 | 70 | 8 | 25 | 14.4 | 12.9 | 60 | 79.5*31.5*46 | 65 |
NK-RT 200*100*70 | 200 | 100 | 70 | 8 | 25 | 15.4 | 13.8 | 60 | 57*43*42 | 65 |
NK-RT 200*155*80 | 200 | 155 | 80 | 10 | 36 | 13.6 | 11.9 | 40 | 64.5*40.5*41 | 65 |
NK-RT 200*200*80 | 200 | 200 | 80 | 12 | 36 | 16 | 14.4 | 40 | 85*43*40.5 | 65 |
NK-RT 255*200*80 | 255 | 200 | 80 | 12 | 36 | 20 | 18 | 40 | 51.8*41.2*79.2 | 65 |
NK-RT 255*200*120 | 255 | 200 | 120 | 12 | 36 | 19.8 | 18 | 30 | 62*53*62 | 65 |
NK-RT 300*250*120 | 300 | 250 | 120 | 12 | 36 | 19.7 |
17.8
|
20
|
61*52*61.5
|
65
|
NK-RT 400*350*120 | 400 | 350 | 120 | 16 | 36 | 14.8 |
13.1
|
10
|
72*41*61.5
|
65
|
1.ABS Material
—
—
2.Reserved Hole Mark
—
—
Depending on the size of the wires, you can choose to use the existing plugs in the reserved holes or use waterproof clamping connectors for optimal waterproofing effects.
3.Waterproof Seal Ring
—
Good corrosion resistance, waterproof more durable.
What can we do for you?
High quality service
1.Twenty years of experience in foreign trade,we have sufficient talent and resources in foreign trade exports , and have successively exported to overseas countries.
2.OEM/ODM:Strong R&D and design team to meet different customization needs..
3.After sale services: 2yrs warranty, product global liability insurance.
- If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
