The ABS material possesses characteristics such as impact resistance, heat resistance, low-temperature resistance, excellent
chemical resistance, superior electrical properties, and a good surface gloss.

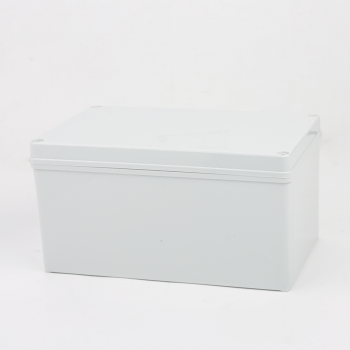

NK-AG 250*150*130 IP65 ABS Waterprooof High Quality Outdoor Junction Box New Design
- group name
- Junction Box
- Min Order
- 1 piece
- brand name
- NAAKUU Electrical Equipment Manufacturer
- model
- NK-AG 250*150*130
- Nearest port for product export
- Ningbo Port, Shanghai Port, Guangzhou Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Wed, 04 Dec 2024 01:23:15 GMT
Paramtents
Body Material：ABS or PC N.Weight：15.6KG
IP:65 Installation：Inside，Outside
Type：Regular，Transparent Cover Certificates：CE,ROHS
Packging & Delivery
-
Min Order1 piece
Briefing
NK-AG 250*150*130 IP65 ABS Waterprooof High Quality Outdoor Junction Box New Design
Detailed
Product Introduction
NK-AG
250×150×130
Waterproof Junction Box
Body material: ABS or PC
Material characteristics: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
Certificates: CE, ROHS
Protection grade: IP65
Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on.
Installation: 1,Inside: There are the installation holes in the base for circuit board or
din rail(More than 2 pcs of M4 brass nuts have been in each box).
2,Outside: The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base.
Outlet hole: Holes can be opened on the box as customers' requirements, and installing cable gland can bring with better waterproof performance.
Product Parameter
Model Code （L×W×H） | G.W./N.W. | Qty/Carton | Carton Dimenstion | Model Code （L×W×H） | G.W./N.W. | Qty/Carton | Carton Dimenstion |
NK-AG 65*50*55 | 21.5/20 | 300 | 51.5*40*31 | NK-AG 200*150*130 | 16.6/15.1 | 30 | 67.5*41*47 |
NK-AG 95*65*55 | 25.1/23.6 | 240 | 49.5*40.5*46.5 | NK-AG 200*200*95 | 18.5/17.0 | 30 | 62*41*51 |
NK-AG 100*100*75 | 20.4/18.9 | 100 | 52*41.5*40.5 |
NK-AG
200*200*130 |
14.6/13.1
|
20
|
67.5*41*42
|
NK-AG 110*80*45 | 24.3/22.8 | 200 | 56.5*41.5*38.5 | NK-AG 250*80*70 | 15.7/14.2 | 50 | 52*41*36 |
NK-AG 110*80*70 | 17/15.5 | 100 | 47*41*38 | NK-AG 250*80*85 | 18.8/17.3 | 50 | 52*41*45.5 |
NK-AG 110*80*85 | 19.7/18.2 | 100 | 57*33.5*45 | NK-AG 250*150*100 | 11.5/10.0 | 20 | 51.5*31*53 |
NK-AG 125*125*75 | 16.6/15.1 | 60 | 52*39.5*39.5 | NK-AG 250*150*130 | 17.1/15.6 | 30 | 67.5*46.5*52 |
NK-AG 125*125*100 | 19.4/17.9 | 60 | 52*39.5*52 | NK-AG 280*190*130 | 19.7/18.2 | 20 | 68*39.5*57.5 |
NK-AG 130*80*70 | 21.4/19.9 | 120 | 54*41.5*45 | NK-AG 280*190*180 | 14.5/13.0 | 12 | 57.5*39.5*56.5 |
NK-AG 130*80*85 | 21.5/20 | 100 | 54*41.5*45 | NK-AG 280*280*130 | 13.4/11.9 | 10 | 68*29*57.5 |
NK-AG 160*80*55 | 22.2/20.7 | 120 | 59.5*34*43 | NK-AG 280*280*180 | 6.9/5.4 | 4 | 57.5*29*37.5 |
NK-AG 160*80*95 | 15.4/13.9 | 60 | 51.5*33.5*50.5 | NK-AG 340*280*130 | 14.9/13.4 | 10 | 67*35*57 |
NK-AG 170*140*95 | 21.1/19.6 | 60 | 57.5*52*49.5 | NK-AG 340*280*180 | 7.9/6.4 | 4 | 57.5*35*37.5 |
NK-AG 175*125*75 | 17.0/15.5 | 50 | 54*52.5*32 |
NK-AG
380*190*130 |
15.6/14.1
|
12
|
59*39*55
|
NK-AG 175*125*100 | 11.9/10.4 | 30 | 52.5*36*39.5 |
NK-AG
380*190*180 |
18/16.5
|
9
|
59*39*56.5
|
NK-AG 175*175*100 | 14.4/12.9 | 30 | 545.5*37*53.5 | NK-AG 380*280*130 | 9.8/8.3 | 6 | 57.5*39*41.5 |
NK-AG 180*80*70 | 20.4/18.9 | 90 | 56*41*46 | NK-AG 380*280*180 | 8.0/6.5 | 4 | 57.5*39*37.5 |
NK-AG 200*150*100 | 19.5/18 | 20 | 54*31*42 |
1.ABS Material
—
—
2.Plastic Anti-Drop Screws
—
—
Buckle design, prevent screws from falling, suitable for special occasions (aerial work, etc.)
3.Flush brass nut
—
—
Metal screw hole design, not easy to rust, corrosion resistance.
3.Waterproof Seal Ring
—
Good corrosion resistance, waterproof more durable.
What can we do for you?
High quality service
1.Twenty years of experience in foreign trade,we have sufficient talent and resources in foreign trade exports , and have successively exported to overseas countries.
2.OEM/ODM:Strong R&D and design team to meet different customization needs..
3.After sale services: 2yrs warranty, product global liability insurance.
- If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
