NAAKUU NKM1-125 1P Mini MCB Circuit Breaker 125amp AC Power For Electrical
- group name
- Mini Circuit Breaker
- Min Order
- 100 piece
- brand name
- NAAKUU Electrical Equipment Manufacturer
- model
- NKM1-125 1P
- Nearest port for product export
- Ningbo Port, Shanghai Port, Guangzhou Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 19:27:13 GMT
Paramtents
Colar：Customized Rated Current ：63A-125A
Rated Volatge ：230/400V Breaking Capacity ：6kA/10kA
Mechinical Life：20000 Times Curve Type：B,C,D
Packging & Delivery
- 10cm x3cm x12cm
-
Min Order100 piece
Briefing
Detailed
Overload Protection Short Circuit Protection

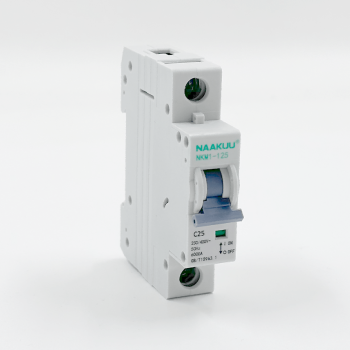

The NKM1-125 is a mini circuit breaker designed for reliable AC power protection. It comes in 1P, 2P, 3P, and 4P models with ratings to 125A, ensuring electrical safety and quality performance.NKM1-125 Mini circuit breakers (MCB) ensure electrical safety in homes, offices and other buildings as well as for industrial applications by protecting electrical installations against overloads and short circuits. Once a fault is detected, the miniature circuit breaker automatically switches off the electrical circuit to prevent damage to wires and to avoid the risk of fire. Warranting reliability and safety for people and assets, MCBs are equipped with two tripping mechanisms: the delayed thermal tripping mechanism for overload protection and the magnetic tripping mechanism for short circuit protection.
Model | NKM1-125 |
Type | MCB |
Pole | 1P/2P/3P/4P |
Rated Voltage | 230/400V |
Rated Current | 63A-125A |
Breaking Capacity | 4.5kA/6kA/10kA |
Protection Function | Overload and short circuit protection |
Curve Type | C/B/D can be customized |
Mechanical Life | 20000 Times |
Installation | 35mm DIN Rail |
Ambient Temperature | -20℃~+70℃ |
Relative Humidity | ≤95% |
Color | Customized |
Green means closed，line disconnected.
1.Twenty years of experience in foreign trade,we have sufficient talent and resources in foreign trade exports , and have successively exported to overseas countries.
2.OEM/ODM:Strong R&D and design team to meet different customization needs..
3.After sale services: 2yrs warranty, product global liability insurance.
- If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
