It can be securely mounted on the wall through the installation holes on the bottom of the box.

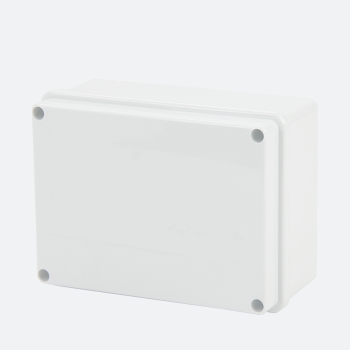

ABS/PC Case Plastic Wall Mount Junction Box NK-DG 150*110*70 IP65 Waterproof Electrical Box
- group name
- Junction Box
- Min Order
- 1 piece
- brand name
- NAAKUU Electrical Equipment Manufacturer
- model
- NK-DG 150*110*70
- Nearest port for product export
- Ningbo Port, Shanghai Port, Guangzhou Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 17:14:39 GMT
Paramtents
Body Material：ABS or PC N.Weight：11.5KG
IP:65 Installation：Inside，Outside
Outside Dimenstion：160*118*70mm Certificates：CE,ROHS
Packging & Delivery
-
Min Order1 piece
Briefing
ABS/PC Case Plastic Wall Mount Junction Box NK-DG 150*110*70 IP65 Waterproof Electrical Box
Detailed
Product Introduction
NK-DG
150×110×70
Waterproof Junction Box
Body material: ABS or PC
Material characteristics: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
Certificates: CE, ROHS
Protection grade: P65
Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on.
Installation: 1, Inside: There are the installation holes in the base for circuit board or
din rail(More than 2 pcs of M4 brass nuts have been in each box).
2,Outside: The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base.
Outlet hole: Holes can be opened on the box as customers' requirements, and installing cable gland can bring with better waterproof performance.
Product Parameter
Model Code | Outside Dimenstion | G.Weight（KG） | N.Weight（KG） | Qty/Carton | Carton Dimenstion （cm） | ||
L | W | H | |||||
NK-DG 120*80*50 | 130 | 90 | 54 | 16.8 | 15.3 | 140 | 54*41.5*46 |
NK-DG 150*110*70 | 160 | 118 | 70 |
13.0
|
11.5
|
60
|
65*36.5*40.5
|
NK-DG 190*140*70 | 195 | 145 | 70 | 18.2 | 18.2 | 60 | 61.5*40.5*61.5 |
NK-DG 240*190*90 | 255 | 200 | 95 | 13.5 | 12 | 20 | 52.5*41.5*53 |
NK-DG 300*220*120 | 315 | 230 | 127 | 19.9 | 18.4 | 20 | 67*48*64.5 |
NK-DG 380*300*120 | 395 | 315 | 126 | 18.3 | 16.8 | 10 | 64.5*40*66.5 |
1.With Installation Holes
—
—
2.Internal Installation
—
—
The inside of the box features a raised platform for the installation of circuit boards or DIN rail components.
3.Hole Positions
—
—
The waterproof box can be easily perforated on the top according to specific usage requirements.
What can we do for you?
High quality service
1.Twenty years of experience in foreign trade,we have sufficient talent and resources in foreign trade exports , and have successively exported to overseas countries.
2.OEM/ODM:Strong R&D and design team to meet different customization needs..
3.After sale services: 2yrs warranty, product global liability insurance.
- If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
