Shock resistance, heat resistance and low temperature resistance Chemical resistance.

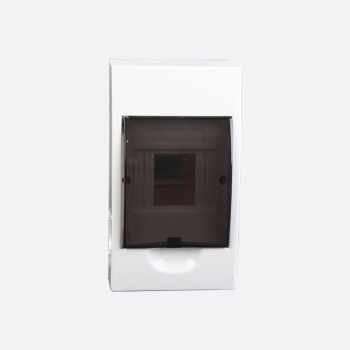

NK-MS 4Way IP50 Waterproof ABS PC Plastic Power Distribution Box For Outdoor Electrical
- group name
- Distribution Box
- Min Order
- 1 piece
- brand name
- NAAKUU Electrical Equipment Manufacturer
- model
- NK-MS 4Way
- Nearest port for product export
- Ningbo Port, Shanghai Port, Guangzhou Port, Qingdao Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 18:39:07 GMT
Paramtents
Body Material：ABS&PC N.Weight：8.7KG
IP:50 Installation：Inside，Outside
Outside Dimenstion：112*200*95mm Certificates：CE,ROHS
Packging & Delivery
-
Min Order1 piece
Briefing
NK-MS 4Way IP50 WAaterproof ABS PC Plastic Power Distribution Box For Outdoor Electrical
Detailed
Product Introduction
NK-MS 4Way
Surface Distribution Box
Body material: ABS
Transparent door: PC
Earth/Natural bars: Brass
Material characteristics: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
Certificates: CE, ROHS
Protection grade: IP50
Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on.
Installation: 1, Inside: There are din rail inside for din-rail type circuit breakers, earth
bar and natural bar for cable connection.
2, Outside: The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base.
Outlet hole: The plastic plate in the hole can be knocked off for cables.
Product Parameter
Model Code | Outside Dimenstion | G.Weight（KG） | N.Weight（KG） | Qty/Carton | Carton Dimenstion （cm） | ||
L | W | H | |||||
NK-MS 4Way | 112 | 200 | 95 | 11.5 | 8.7 | 30 | 51*36*42.5 |
NK-MS 6Way | 148 | 200 | 95 |
14.9
|
11.5
|
30
|
51*42.5*48.5
|
NK-MS 8Way | 184 | 200 | 95 | 16.7 | 12.8 | 30 | 52*42.5*58.5 |
NK-MS 10Way | 222 | 200 | 95 | 13 | 9.8 | 20 | 51*43*47.5 |
NK-MS 12Way | 256 | 200 | 95 | 14.8 | 11.5 | 20 | 51*43*54 |
NK-MS 15Way | 310 | 200 | 95 | 12.8 | 9.9 | 15 | 51*33*63.5 |
NK-MS 18Way | 365 | 222 | 95 | 15.2 | 12.8 | 15 | 52.5*38*70 |
NK-MS 24Way | 271 | 325 | 97 | 13.2 | 10.3 | 10 | 53.5*34*56.5 |
NK-MS 36Way | 271 | 462 | 100 | 18.5 | 14.8 | 5 | 54.5*28.5*48 |
1.ABS Material
—
—
2.Built In Bracket
—
—
35mm guide rail.
Easy installation，Prevent harm.
3.Transparent Flip Design
—
—
Effective protection to reduce dust.Dust prevention.
